Hugo Mermaid Module

Mermaid lets you create diagrams and visualizations using text and code.

Modulegithub.com/hugomods/mermaid
StatsGitHub Stars Used By Used By Used By Used By

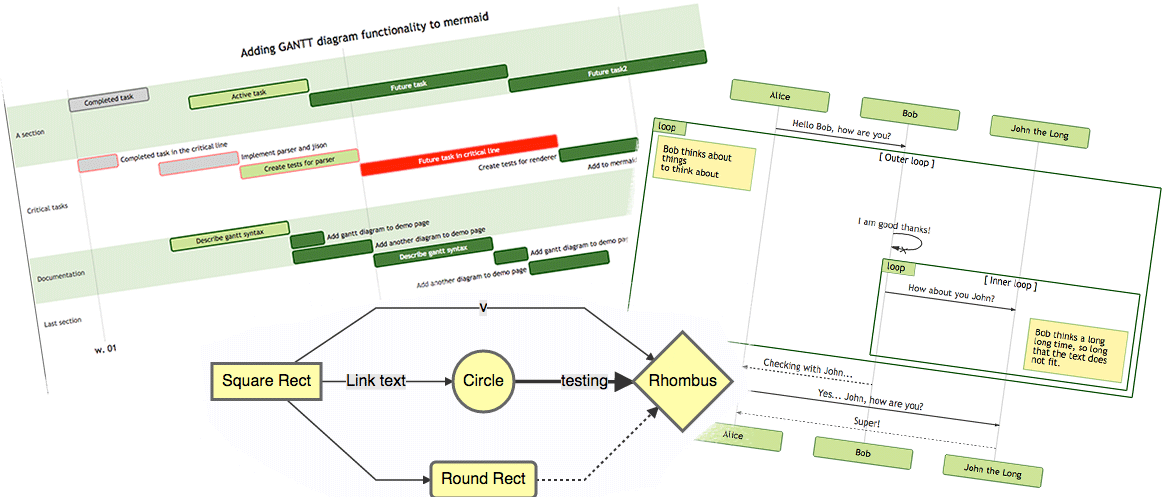

The featured image credited by: https://mermaid.js.org/.

Installation

1. Import Module

1[[module.imports]]
2path = "github.com/hugomods/mermaid"

2. Import the JavaScript

Skip this step if your theme supports HugoPress.

1{{ partial "mermaid/assets/js" . }}

Configuration

The site parameters as following.

ParameterTypeDefaultDescription
js_urlStringLatest version from JS Delivr CDNThe Mermaid script URL.

hugo.yaml

1params:
2  mermaid:
3    js_url: https://cdn.jsdelivr.net/npm/mermaid@latest/dist/mermaid.esm.min.mjs

hugo.toml

1[params]
2  [params.mermaid]
3    js_url = 'https://cdn.jsdelivr.net/npm/mermaid@latest/dist/mermaid.esm.min.mjs'

hugo.json

1{
2   "params": {
3      "mermaid": {
4         "js_url": "https://cdn.jsdelivr.net/npm/mermaid@latest/dist/mermaid.esm.min.mjs"
5      }
6   }
7}

Usage

Use Mermaid via Code Block

1```mermaid
2DIAGRAM
3```

Use Mermaid via Shortcode

1{{< mermaid >}}
2DIAGRAM
3{{< /mermaid >}}

Examples

Flowcharts

    flowchart TD
	  A[Start] --> B{Is it?}
	  B -- Yes --> C[OK]
	  C --> D[Rethink]
	  D --> B
	  B -- No ----> E[End]

Entity Relationship Diagrams

	erDiagram
	CUSTOMER }|..|{ DELIVERY-ADDRESS : has
	CUSTOMER ||--o{ ORDER : places
	CUSTOMER ||--o{ INVOICE : "liable for"
	DELIVERY-ADDRESS ||--o{ ORDER : receives
	INVOICE ||--|{ ORDER : covers
	ORDER ||--|{ ORDER-ITEM : includes
	PRODUCT-CATEGORY ||--|{ PRODUCT : contains
	PRODUCT ||--o{ ORDER-ITEM : "ordered in"


Class Diagrams

    classDiagram
	    class WebDriver {
	    }

	    class WebElement {
	    }

	    class LoginPage {
	        +WebElement usernameField
	        +WebElement passwordField
	        +WebElement loginButton
	    }

	    class LoginTest {
	        +WebDriver driver
	        +void testLogin()
	    }

	    WebDriver <|-- LoginTest
	    WebElement <|-- LoginPage
	    WebDriver <|-- LoginPage
    classDiagram
	    direction LR
	    class Serializable {
	        <<interface>>
	    }
    classDiagram
	    class WashingMachine {
	        +MachineState currentState
	        +startWashing() : void
	        +stopWashing() : void
	    }
	    class MachineState {
	        <<Enumeration>>
	        ON
	        OFF
	    }
	    WashingMachine --> MachineState

State Diagrams

    stateDiagram-v2
	    [*] --> Still
	    Still --> [*]

	    Still --> Moving
	    Moving --> Still
	    Moving --> Crash
	    Crash --> [*]
